A cost-effective semi-automatic machine for applying triangular tape—ideal for smaller production volumes.
GET A QUOTE
The MR-450B offers a semi-automatic solution for manufacturers requiring triangular tape application without full automation. Operators feed cartons manually while the machine handles precise tape placement via servo control and fiber optic positioning. A practical choice for smaller runs, custom orders, or operations with variable production needs.
| Model | MR-450B |
| Max. Size of Side Sheet | 800×200mm |
| Min. Size of Side Sheet | 100×40mm |
| Max. Size of Double-Sided Tape | 170×170mm |
| Min. Size of Double-Sided Tape | 30×30mm |
| Production Speed | 40-70pcs/min |
| Power | 2kw |
| Voltage | AC 220V |
| Machine Size | 2200×900×1600mm |
| Machine Weight | 400kg |
| Double-Sided Tape Head Parameters | |
| Double-Sided Tape Size | 5×35mm |
| Max. Size of Loading | ≤430mm |

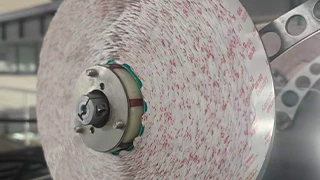

| Inner Diameter of Tape Roll | 76mm |
| Speed | 40-90M/min |
| Min. Distance Between Two Sticking Ends | 10mm |
| Glue Precision | ±1mm |
| Weight | 7kg |
| Overall Dimension | 760×240×60mm |
| Rated Power | 24V/20w |
| NO. | Name | Picture | Brand |
|---|---|---|---|
| 1 | Bearing |  |
LYC |
| 2 | Fiber Seat |  |
OMRON |

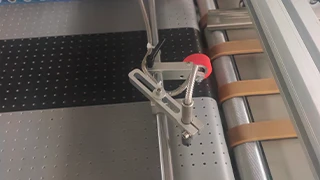

| 3 | Optical Fiber |  |
OMRON |
| 4 | HMI |  |
FLEXEM |
| 5 | Blade |  |
SHANGHAI |
| 6 | Pressure Wheel |  |
SHANGHAI |
| 7 | Drive |  |
HECVA |
| 8 | Belt |  |
GUANGZHOU |
| 9 | Cylinder, Solenoid Valve |  |
SMC |
| 10 | Main Motor |  |
LB |
| 11 | Frequency Converter |  |
HECVA |
| 12 | PLC |  |
DELTA |
A1: The MR-450B is a semi-automatic model—operators manually feed cartons while the machine handles precise tape placement. It is more cost-effective and ideal for smaller production volumes or variable orders.
A2: Tape head speed reaches 40-90 m/min with a placement accuracy of ±1mm using servo control and fiber optic positioning. Production speed for finished pieces is 40-70 pcs/min.
A3: It handles side sheets from 100×40mm up to 800×200mm, and double-sided tape pieces from 30×30mm up to 170×170mm. Standard tape width is 5mm.
