LY-2400

Compact Fully Automatic Gluing Machine

This compact, fully automatic folder gluer features premium intelligent digital control system, delivering stable, high-precision operation for daily and standard carton production. Designed with space-saving compact structure, this automatic folding and gluing equipment ensures reliable efficiency, simple operation and consistent bonding quality for regular carton processing and packaging manufacturing.

  • Max. Paperboard Size: 1200*2400mm
  • Min. Paperboard Size: 170*420mm
  • Max. Mechanical Speed: 180pcs/min
GET A QUOTE
Product Description

The machine is fully controlled by computer throughout the process. It features digital operation and touch screen data input, enabling data changes and production speed adjustments without stopping. It offers a simple, efficient, reliable and precise control mode. It has an order memory function, allowing for rapid order conversion within 3-5 minutes. It supports reset function and fine-tuning function. The design of multiple sets of unique structures has successfully overcome common technical problems such as scissors difference and high-low lines, ensuring stable, fast and precise production of cartons.

Machine Highlights
Fully Automatic High-Speed Gluing
Automates the entire gluing process with high-speed operation, maximizing daily output.
Precise Adhesion
Advanced glue application system ensures uniform coating and strong bonding, reducing waste and rework.
High Production Rate
Engineered for continuous high-speed performance, keeping up with high-volume packaging demands.
Technical Specifications

Note: Special specifications can be customized according to customer’s needs.



Model LY-2600
Max. Paperboard Size 1200*2400mm
Min. Paperboard Size 170*420mm

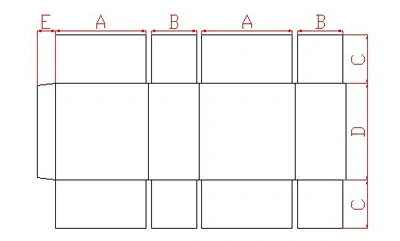

Min. A 130mm
Max. A 750mm
Min. B 80mm
Max. B 450mm
Min. C+D+C 170mm
Max. C+D+C 1200mm
Min. (A+B)*2+E 420mm
Max. (A+B)*2+E 2400mm
Max. Mechanical Speed 180/min

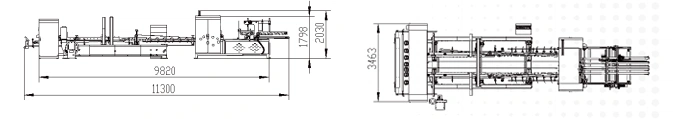

Machine size (L*W*H) 11500*4000*2000mm
Total power 380V   13 KW

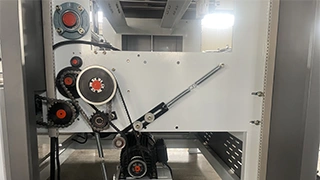

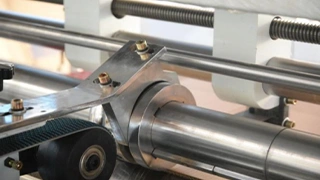

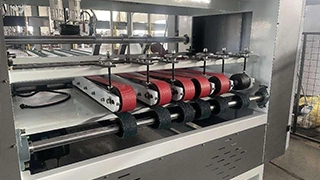

Machine Details
Details
Details
Details
Main Configuration
NO. Name Picture Brand
1 Touch Screen MCGS
2 Inverter PLC (Master Computer) DELTA
3 Switching Power Supply OMRON
4 Button Schneider
5 AC Contactor Schneider
6 Servo Motor  EURA(China)
7 Remote Controller  TELECRANE(Taiwan)
8 Travel Switch CHINT
9 Circuit Breaker CHINT
10 Control Transformer Zhejiang
Frequently Asked Questions Related to Two Sheets Folder Gluer
Q1: What is the main advantage of this machine for production efficiency?

A1: It features digital control with a touch screen, allowing data changes and speed adjustments without stopping. Order changeover takes only 3-5 minutes, and maximum mechanical speed reaches 180/min.

Q2: What size range of cartons can it handle?

A2: It handles paperboard from 170×420mm up to 1200×2400mm, with a wide range of box dimensions (A, B, C, D, E) fully detailed in the specs, covering most standard carton sizes.

Q3: How does it ensure gluing accuracy and carton quality?

A3: The machine uses an advanced glue application system for uniform coating and strong bonding. Its unique structural design resolves common issues like scissor difference and high-low lines for stable, precise carton production.
