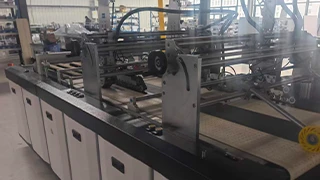

A high-speed fully automatic multihead machine for precision tape application on cartons and cardboard.
GET A QUOTE
Automatic feeding, fiber optic sensor and servo positioning, PLC control, simple operation, precise adhesive application
| Model | DT-850 | DT-1200 |
| Material | Over 200g/m² cardboard/ corrugated board/E-B-C-wave | |
| Min. Paper Size | 140x100mm | 140×100mm |
| Max. Paper Size | 850x850 mm | 1200×850mm |
| Working Width | 850 mm | 1250mm |
| Conveyor Speed | 90m/min | 90m/min |
| Tape Width | 5-35mm,10-60mm | 5-35mm,10-60mm |
| Adhesive Precision | ±1.5mm | ±1.5mm |
| Needed Air Supply | Min.6 bar | Min.6 bar |
| Total Power | 4KW (220V AC 3φ 50HZ) | 4KW (220V AC 3φ 50HZ) |
| Machine Weight | 1200KG | 1400KG |
| Machine Size(LxXxH) | 4500×1400×1400mm | 4500×1800×1400mm |
| NO. | Name | Picture | Brand |
|---|---|---|---|
| 1 | Bearing |  |
LYC |
| 2 | Fiber Seat |  |
OMRON |
| 3 | Optical Fiber |  |
OMRON |
| 4 | HMI |  |
FLEXEM |
| 5 | Blade |  |
SHANGHAI |
| 6 | Pressure Wheel |  |
SHANGHAI |
| 7 | Drive |  |
HECVA |
| 8 | Belt |  |
GUANGZHOU |
| 9 | Cylinder, Solenoid Valve |  |
SMC |
| 10 | Main Motor |  |
LB |
| 11 | Frequency Converter |  |
HECVA |
| 12 | PLC |  |
DELTA |
A1: The DT-850 handles a maximum paper size of 850×850mm with a working width of 850mm, while the DT-1200 handles 1200×850mm with a working width of 1250mm. Both share the same speed, precision, and power configuration.
A2: The servo-driven system with optical fiber positioning achieves an adhesive precision of ±1.5mm. Conveyor speed reaches 90m/min, ensuring both accuracy and high throughput.
A3: It supports tape widths of 5-35mm or 10-60mm. Suitable materials include cardboard over 200g/m², corrugated board, and E/B/C-wave flutes.
