A simple, reliable manual machine for applying double-sided tape on smaller runs or custom projects.
GET A QUOTE
The SD-700 is a manual tape pasting machine designed for flexibility and ease of use. Operators guide the tape application process, making it ideal for small-batch production, custom cartons, or operations where automation is not required. Compact and durable, it delivers consistent results with minimal setup time.
| Model | SD-700 |
| Double-Sided Tape Size | 5*35/10*60mm |
| Max. Size of Loading | ≤430mm |
| Inner Diameter of Tape Roll | 76mm |
| Paper Size | Min 100*140mm Max 700*600mm |
| Speed | 10-90M/min |
| Min. Distance Between Two Sticking Ends | 10mm |
| Glue Precision | ±1mm |
| Weight | 800kg |
| Overall Dimension | 2000*1500*1600mm |
| Rated Power | 1.5kw/220V |
| NO. | Name | Picture | Brand |
|---|---|---|---|
| 1 | Bearing |  |
LYC |
| 2 | Fiber Seat |  |
OMRON |
| 3 | Optical Fiber |  |
OMRON |

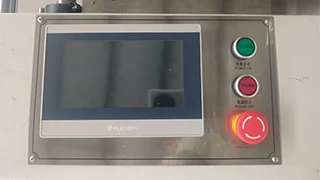

| 4 | HMI |  |
FLEXEM |
| 5 | Blade |  |
SHANGHAI |
| 6 | Pressure Wheel |  |
SHANGHAI |
| 7 | Drive |  |
HECVA |
| 8 | Belt |  |
GUANGZHOU |
| 9 | Cylinder, Solenoid Valve |  |
SMC |
| 10 | Main Motor |  |
LB |
| 11 | Frequency Converter |  |
HECVA |
| 12 | PLC |  |
DELTA |
A1: The SD-700 is a manual model designed for flexibility and ease of use. It is ideal for small-batch production, custom cartons, or operations where full automation is not required—offering a lower investment cost.
A2: It achieves an application accuracy of ±1mm with a speed range of 10-90 m/min, adjustable based on operator control.
A3: It handles paper sizes from 100×140mm up to 700×600mm, with double-sided tape widths of 5-35mm or 10-60mm.
