A specialized machine for applying glue, scraping, and attaching release paper—ideal for e-commerce boxes.
GET A QUOTE
The MR-850 combines glue application, scraping, and release paper attachment in a single automated process. Designed specifically for e-commerce boxes like Taobao mailers, it ensures consistent adhesive coverage and clean release paper placement. Servo-controlled with fiber optic positioning, it delivers the precision required for high-quality self-adhesive packaging.
| Model | MR-850 |
| Max. Size | 850*850mm |
| Min. Size | 200(L)*200(W)mm |
| Scraping Width | 12-40mm |
| Min. Scraping Length | 100mm |
| Production Speed | 40-90m/min |
| Power | 10KW |
| Voltage | AC 380V |
| Machine Size | 5000*1340*1650mm |
| Machine Weight | 1200KG |

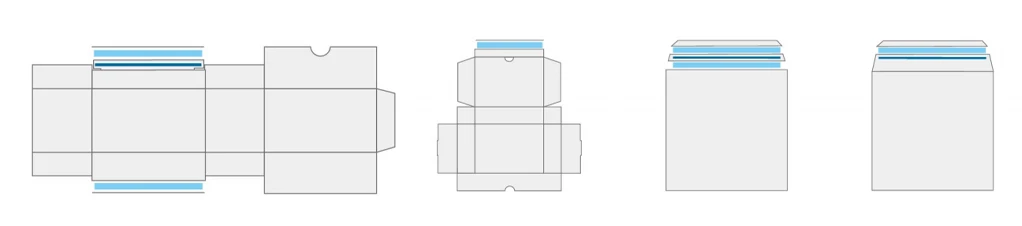

Applicable to Taobao box, online shopping boxes and other products scratch adhesive sticker release paper, easy to tear tape
| NO. | Name | Picture | Brand |
|---|---|---|---|
| 1 | Bearing |  |
LYC |
| 2 | Fiber Seat |  |
OMRON |
| 3 | Optical Fiber |  |
OMRON |

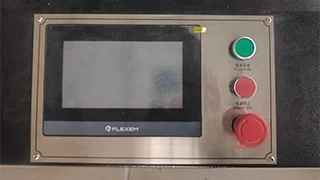

| 4 | HMI |  |
FLEXEM |
| 5 | Blade |  |
SHANGHAI |
| 6 | Pressure Wheel |  |
SHANGHAI |
| 7 | Drive |  |
HECVA |
| 8 | Belt |  |
GUANGZHOU |
| 9 | Cylinder, Solenoid Valve |  |
SMC |
| 10 | Main Motor |  |
LB |
| 11 | Frequency Converter |  |
HECVA |
| 12 | PLC |  |
DELTA |
A1: The MR-850 is designed for e-commerce boxes such as Taobao mailers. It combines glue application, glue scraping, and release paper attachment in one automated process for self-adhesive packaging.
A2: Production speed reaches 40-90 m/min with a placement accuracy of ±1mm using servo control and fiber optic positioning.
A3: It handles paper sizes from 200×200mm up to 850×850mm, with an adjustable scraping width of 12-40mm and a minimum scraping length of 100mm.
