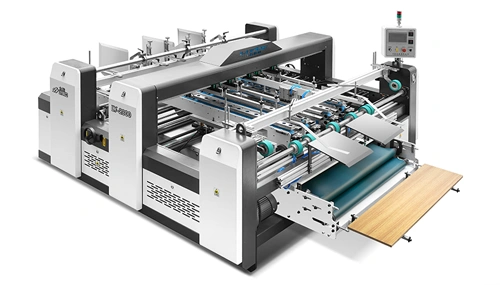

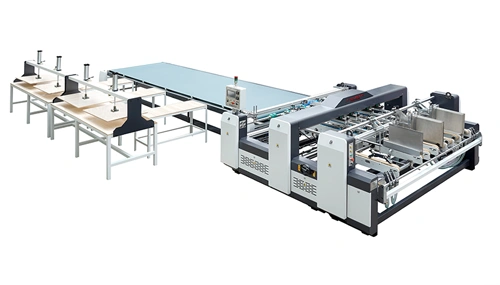

High Speed Double-Sheet Folder Gluer Machine (Multi-Station/Single Station)

A compact, budget-friendly semi-automatic machine ideal for small to medium-scale carton production.

Max. Feeding Paper Size (Single Sheet)： 1100×1150mm
Min. Feeding Paper Size (Single Sheet)： 350×200mm
Max. Height of Paper Stack： 500mm

GET A QUOTE

Product Description

The semi-automatic machine has a small footprint, is reasonably priced, and is suitable for the needs of small and medium-sized customers. It helps solve the problem of two-sheet cartons for customers.

Machine Highlights

Compact Footprint

Space-efficient design fits easily into smaller production facilities.

Cost-Effective

Affordable pricing without compromising on core gluing performance.

Multi-Station Efficiency

Multiple workstations support steady, productive output.

Technical Specifications

Model	LY-2300	LY-2300
Station	Multi-Station	Single Station
Max. Feeding Paper Size (Single Sheet)	1100×1150mm	1100×1150mm
Min. Feeding Paper Size (Single Sheet)	350×200mm	350×200mm
Max. Height of Paper Stack	500mm	400mm
Main Motor Power	2.2kw	2.2kw
Total Power	11.6kw	12.3kw
Total Weight	3.7t	3.7t
Machine Dimensions	9200×3100×1400mm	3500×3100×1400mm

Machine Details

Feeder Part

Gluing Part

Splicing Part

Main Configuration

NO.	Name	Brand
1	Bearing	NSK, Harbin
2	Linear Guide Rail	HIWIN
3	PLC	Delta
4	HMI	WECON
5	Relay	OMRON
6	Contactor	Schneider
7	Frequency Converter	SINEE
8	Belt	Shenzhen
9	Cylinder, Solenoid Valve	TAIWAN AirTAC
10	Optoelectronic Switch	Schneider
11	Main Motor	MAILI
12	Adjusting Motor	MAILI
13	Servo Motor	SINEE
14	Machine Head Belt	Cowhide Band
15	Conveyor	Shenzhen

Related Products

High Speed Two Sheets Folder Gluer Machine

LYA-2300/2600

High-Speed Double-Sheet Folder Gluer Machine

LY-2600

Semi-automatic Double-sheet Folder Gluer (Multi-Station)

LY-2900

High-Efficiency Double-Sheet Folder Gluer with Multi-Station

Frequently Asked Questions Related to Two Sheets Folder Gluer

Q1: What is the difference between the multi-station and single-station versions?

A1: The multi-station version has a longer footprint (9200mm) with multiple workstations for continuous workflow, while the single-station version (2300mm) is space-saving.Both share the same feeding capacity and core performance.

Q2: What is the maximum carton size this machine can produce?

A2: It handles single sheets up to 1100×1150mm with a stack height of 500mm (multi-station) or 400mm (single-station), ideal for small to medium-sized double-sheet carton production.

Q3: Is this model affordable and reliable for small factories?

A3: Yes. It is designed as a budget-friendly, compact solution with key components from NSK, HIWIN, Delta, and Schneider, balancing cost-effectiveness with reliable performance.
