A wide-format fully automatic machine for applying double-sided tape to larger cartons and sheets.
GET A QUOTE

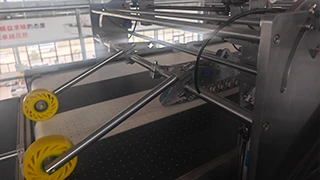

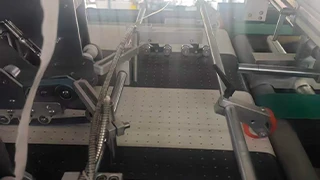

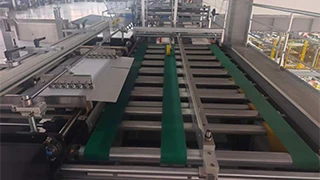

The MR-1350/1650 delivers fully automatic tape application for larger-format cartons and cardboard. Servo-driven with fiber optic positioning, it ensures precise tape placement across widths up to 1650mm. The user-friendly PLC control simplifies operation, making it an ideal choice for manufacturers handling bigger substrates.
| Model | MR-1350 | MR-1650 |
| Material | Over 250g/m² cardboard/ corrugated board/E-B-C-wave | |
| Min. Paper Size | 250×250mm | 250×250mm |
| Max. Paper Size | 1350×850mm | 1650×1250mm |
| Working Width | 600mm | 600mm |
| Conveyor Speed | 90m/min | 90m/min |
| Tape Width | 5-35mm 10-60mm | 5-35mm 10-60mm |
| Sticking Style | Vertical Sticking | Vertical Sticking |

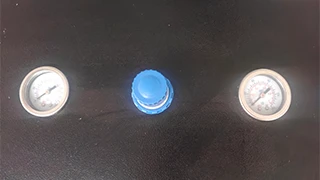

| Needed Air Supply | Min.6 bar | Min.6 bar |
| Total Power | 3.5kw (220V AC 3φ 50HZ) | 3.5kw (220V AC 3φ 50HZ) |
| Machine Weight | 1500kg | 1700kg |
| Machine Size(L×X×H) | 4500×2450×1200mm | 4500×2750×1400mm |
| NO. | Name | Picture | Brand |
|---|---|---|---|
| 1 | Bearing |  |
LYC |
| 2 | Fiber Seat |  |
OMRON |

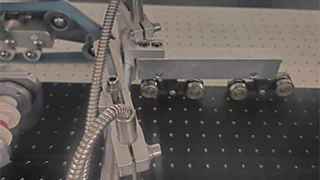

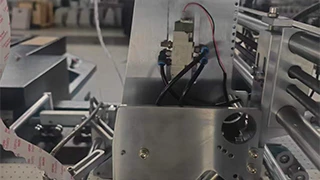

| 3 | Optical Fiber |  |
OMRON |

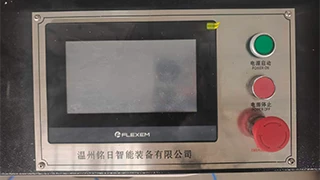

| 4 | HMI |  |
FLEXEM |
| 5 | Blade |  |
SHANGHAI |

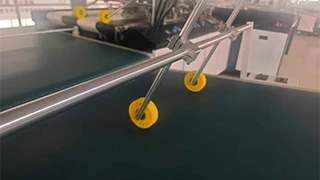

| 6 | Pressure Wheel |  |
SHANGHAI |
| 7 | Drive |  |
HECVA |

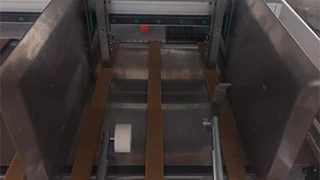

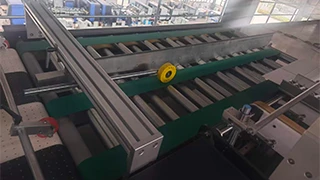

| 8 | Belt |  |
GUANGZHOU |

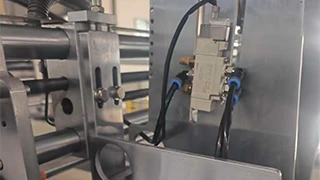

| 9 | Cylinder, Solenoid Valve |  |
SMC |
| 10 | Main Motor |  |
LB |

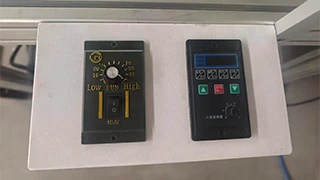

| 11 | Frequency Converter |  |
HECVA |
| 12 | PLC |  |
DELTA |
A1: The MR-1350 handles a maximum paper size of 1350×850mm, while the MR-1650 handles larger sheets up to 1650×1250mm. Both share the same speed, precision, and power configuration.
A2: The servo-driven system with fiber optic positioning achieves an adhesive precision of ±1mm. Conveyor speed reaches 90m/min, ensuring both accuracy and high throughput.
A3: It supports tape widths of 5-35mm or 10-60mm. Suitable materials include cardboard over 250g/m², corrugated board, and E/B/C-wave flutes.
