Automatic Double Sheet Folder Gluer Machine

The fully automatic machine saves a great deal of labor for customers and reduces costs. It has the functions of both single-sheet and two-sheet modes. Buying one machine is equivalent to getting two different machines.

Max. Feeding Paper Size (Single Sheet)： 1100x1150mm
Min. Feeding Paper Size (Single Sheet)： 500x400mm
Max. Height of Paper Stack： 500mm

GET A QUOTE

Product Description

The LY-2300B Fully Automatic Two Sheets Folder Gluer is a core production solution designed for medium to large-scale carton manufacturers. It strikes the ideal balance between high-speed efficiency and operational reliability. With intelligent, quick-change order capabilities and a durable heavy-duty structure, it ensures stable and efficient production—from large appliance boxes to heavy-duty logistics cartons. A reliable choice for boosting capacity and controlling costs.

Machine Highlights

10-Minute Quick Changeover

Smart PLC system enables specification switch in about 10 minutes, significantly reducing downtime and handling multiple batch orders with ease.

PLC Parameter Memory

Stores and recalls over 200 production parameters with one click—simplifying repeat order setup and ensuring operational consistency.

16mm Heavy-Duty Wall Plate Structure

Core components made of 16mm thick A3 steel with heat treatment, providing a solid foundation for long-term stability and precision at high speeds.

Multi-Language Intelligent Operation

Features Chinese, English, and Spanish touchscreen interfaces plus comprehensive video tutorials—reducing the learning curve for global customers.

Technical Specifications

Model	LY-2300B
Max. Feeding Paper Size（Single Sheet）	1100×1150mm
Min. Feeding Paper Size（Single Sheet）	500×400mm
Max. Height of Paper Stack	500mm
Main Motor Power	4.4kw
Total Power	15.5kw
Total Weight	4.5t
Machine Dimensions	7000×3000×1400mm

Machine Details

Automatic Suction Paper Feeding Section

Gluing Section

Folding Section

Patting Section

Conveyor Section

Splicing Section

Main Configuration

NO.	Name	Brand
1	Bearing	NSK, Harbin
2	Linear Guide Rail	HIWIN
3	PLC	Delta
4	HMI	WECON
5	Relay	OMRON
6	Contactor	Schneider
7	Frequency Converter	SINEE
8	Belt	Shenzhen
9	Cylinder, Solenoid Valve	TAIWAN AirTAC
10	Optoelectronic Switch	Schneider
11	Main Motor	MAILI
12	Adjusting Motor	MAILI
13	Servo Motor	SINEE
14	Machine Head Belt	Cowhide Band
15	Conveyor	Shenzhen

Related Products

High Speed Two Sheets Folder Gluer Machine

LYA-2300/2600

High-Speed Double-Sheet Folder Gluer Machine

LY-2300

High Speed Double-Sheet Folder Gluer Machine (Multi-Station/Single Station)

Frequently Asked Questions Related to Two Sheets Folder Gluer

What is the changeover time when switching between different box sizes?

10 minutes or less. With PLC memory storing 200+ job parameters, operators can quickly recall settings for different box dimensions, minimizing downtime between production runs.

How strong are the seams on two-sheet assembled boxes?

Stronger than single-sheet boxes. The overlapping joint design creates enhanced structural integrity, making the finished cartons ideal for heavy-duty applications like furniture and industrial equipment packaging.

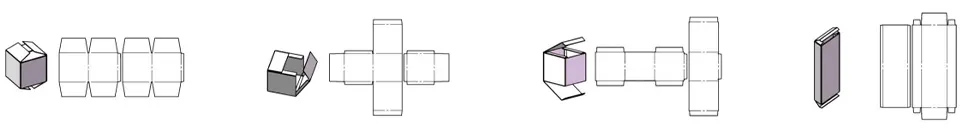

Can it handle special-shaped boxes?

Yes, with customization. The folding and transport systems can be optimized for irregular-shaped boxes, ensuring smooth processing for complex packaging requirements.
