Tape Pasting Machine Automatic Triangle Double-Sided

A fully automatic machine specialized for applying triangular-shaped double-sided tape to cartons.

Size of Long Strip Product： 100×60-800×450mm
Max. Size of Auto Side Feeding Sheet： 800×200mm
Min. Size of Auto Side Feeding Sheet： 100×30mm

GET A QUOTE

Product Description

The MR-450A is purpose-built for applying triangular double-sided tape—a common requirement for self-locking cartons and e-commerce packaging. It features automatic feeding, servo-controlled tape application, and fiber optic positioning to ensure precise placement on each carton. Ideal for high-volume production of mailer boxes and crash-lock bottom cartons.

Machine Highlights

Triangular Tape Specialist

Optimized for applying triangular double-sided tape on self-locking cartons.

High-Speed Automation

Fully automatic feeding and placement for consistent, high-volume output.

Fiber Optic Precision

Servo-controlled system ensures accurate tape positioning every cycle.

Technical Specifications

Model	MR-450A
Max. Size of Automatic Side Feeding Sheet	800×200mm
Min. Size of Automatic Side Feeding Sheet	100×30mm
Size of Long Strip Product	100×60-800×450mm
Size of Double-Sided Tape for Long Strip	5-35mm
Width of Unwinding Conveyor Belt	600mm
Max. Size of 2 Single Triangle Double-Sided Tape for Rotary Sticking	180×180mm
Min. Size of 2 Single Triangle Double-Sided Tape for Rotary Sticking	40×40mm
Production Speed of Single Triangle Sticking	20-30pcs/min
Power/Voltage	5kw/AC220V
Machine Size	4750×1700×1500mm
Machine Weight	1500kg

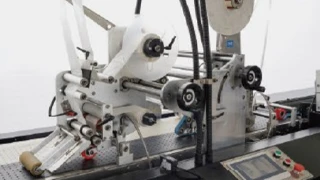

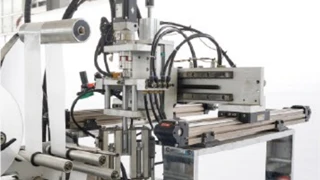

Machine Details

30 Seconds Quickly Change Double Sided Tape

Adhesive Head Screws Can Be Adjusted Left And Right

Main Configuration

NO.	Name	Brand
1	Bearing	LYC
2	Fiber Seat	OMRON
3	Optical Fiber	OMRON
4	HMI	FLEXEM
5	Blade	SHANGHAI
6	Pressure Wheel	SHANGHAI
7	Drive	HECVA
8	Belt	GUANGZHOU
9	Cylinder, Solenoid Valve	SMC
10	Main Motor	LB
11	Frequency Converter	HECVA
12	PLC	DELTA

Related Products

DT-850/1200

Automatic Multihead Double-Sided Tape Pasting Machine

Tape Pasting Machine Semi-Automatic Triangle Double-Sided

MR-450B

Semi-Auto Triangle Tape Pasting Machine Double-Sided

MR-850

Paper Pasting Machine Automatic Glue Scraping & Release

Frequently Asked Questions Related to Two Sheets Folder Gluer

Q1: What is the main application of this machine?

A1: The MR-450A is purpose-built for applying triangular double-sided tape to self-locking cartons, such as e-commerce mailer boxes and crash-lock bottom cartons.

Q2: What is the production speed and tape application accuracy?

A2: Production speed is 20-30 pcs/min for single triangle sticking, with an application accuracy of ±1mm using servo control and fiber optic positioning.

Q3: What product sizes can this machine handle?

A3: It handles long strip products from 100×60mm up to 800×450mm, with automatic side feeding sheets ranging from 100×30mm to 800×200mm.
